VERTICO / ROTARY FRAME

Grow more.
Build less.

High-density growing infrastructure for commercial greenhouse and indoor production.

A configurable vertical growing carousel that creates more productive canopy within a smaller facility footprint—while bringing every growing level to an accessible working height.

Discuss your facility Explore the machine
ENGINEERED AROUND THE WAY YOU GROWSCROLL TO EXPLORE ↓

THE ROTARY FRAME, EXPLAINED

Designed around
the way you grow.

Six configurable features adapt the Rotary Frame to your crop, facility, and workflow—from growing-layer spacing and irrigation to crop access and facility layout.

01 / CUSTOMIZABLE SUPERSTRUCTURE

Built around your facility.

Customizable dimensionsPlan the carousel dimensions around available floor space and clear height.
A facility-led configurationConsider crop access, handling areas, and the surrounding infrastructure together when planning the layout.

02 / ADJUSTABLE GROWING LAYERS

Give every crop room to grow.

Layer spacing adapts to the crop and the way you grow it. Configure the platform for propagation-only operations or the full plant lifecycle, with growing layers suited to different substrates and cultivation methods.

Crop lifecycleConfigure closer layers for propagation or more clearance to support the full plant lifecycle.
Range of growing methodsConfigurations accommodate a variety of growing methods, including hydroponic gutters, soil-based beds, and varied crop arrangements.

03 / STAINLESS STEEL COMPONENTS

Durability where the work happens.

Purposeful material selectionStainless steel is used in mechanical components to enhance durability.
Simpler mechanical designReduced component complexity supports streamlined maintenance of the growing platform.

04 / PROGRAMMABLE ROTATION & IRRIGATION

Movement on your terms.

Program rotation and irrigation around your crop cycle. The carousel brings crops to an ergonomic working height for inspection and processing, while programmable watering gives growers control over irrigation duration. In a greenhouse, movement also helps distribute sunlight more evenly.

Efficient operationsSet rotation frequency and bring crops within reach for manual or robotic handling.
Irrigation matched to the cropConfigure irrigation parameters around the needs of your growing cycle.
More even growing conditionsRotational movement helps reduce microclimates and balance sunlight exposure.

05 / GREENHOUSE & INDOOR VARIANTS

One platform. Two growing environments.

Solar GreenhouseHarnesses natural sunlight through pitched glasshouse glazing with ridge ventilation sashes, minimizing supplemental lighting demand.
CEA Indoor WarehouseOperates in sealed, insulated envelopes with suspended horticultural LED grow arrays and high-bay HVAC climate ducting.

06 / OPTIONAL TRACK-MOUNTED MOBILITY

Make room for more growing.

For operations that need a more flexible layout, carousels can optionally be placed on tracks. Moving the carousel itself can reduce space requirements and worker movement while integrating easily with existing product flow.

An optional configurationSpecify track-mounted mobility when it suits your facility layout and operating model.
Space and workflow togetherPlan carousel movement and access around daily growing tasks to reduce the space needed for the operation.

CROP FLEXIBILITY

One platform.
Many ways to grow.

From compact greens to nursery crops and specialty production, adjustable layers let the carousel support a broad range of crop families.

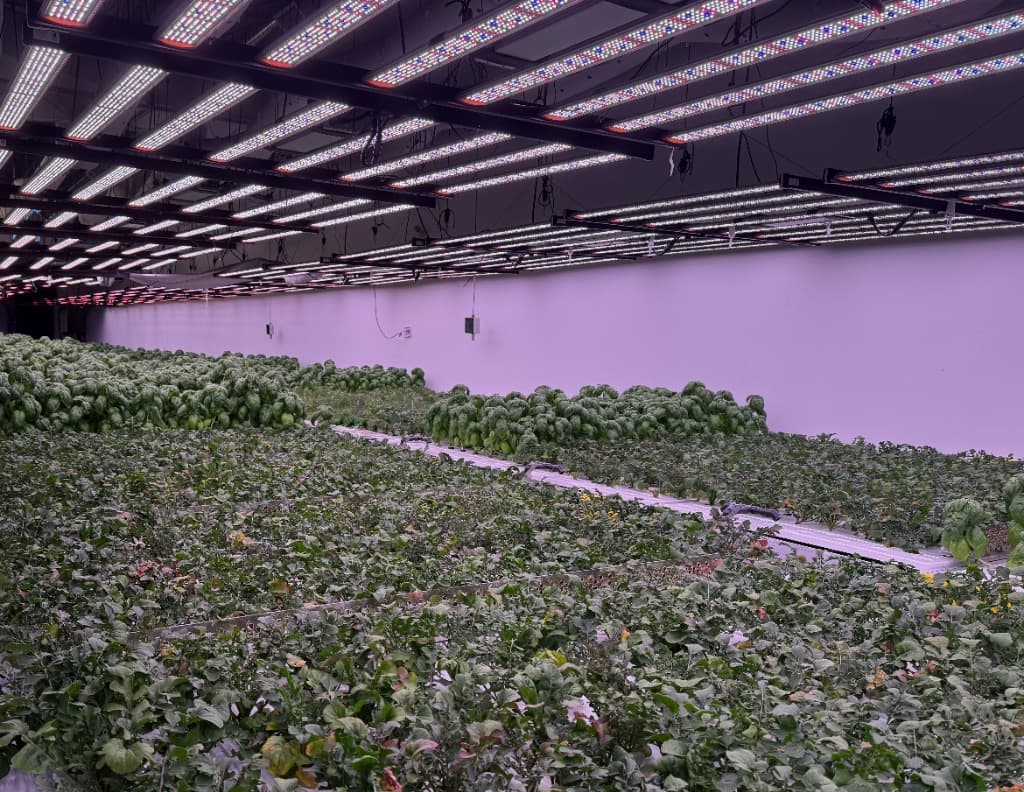

Commercial vertical growing facility under customized LED array
COMMERCIAL PRODUCTIONAdjust the platform around the crop.

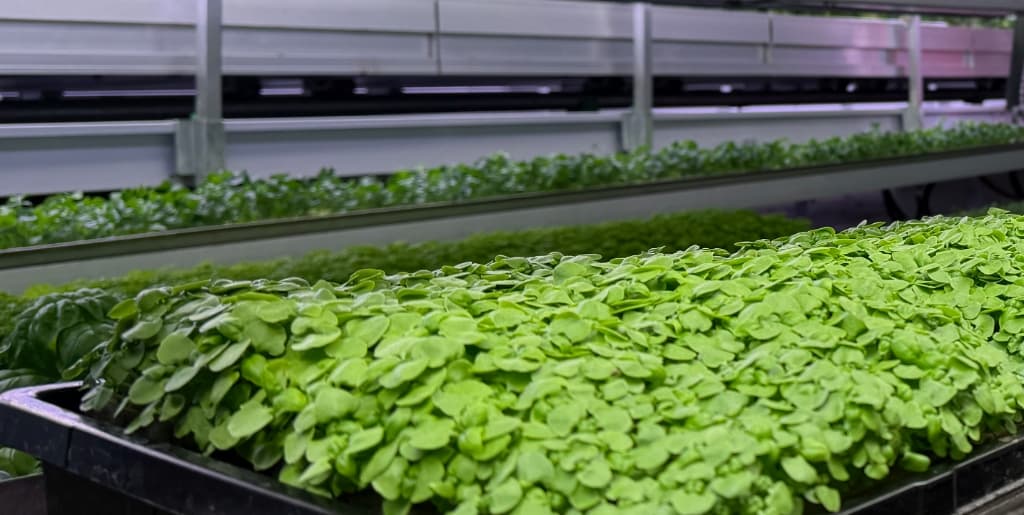

Close-up view of vibrant green canopy in cultivation trays
CROP CANOPYHigh-density cultivation
01

Microgreens

02

Leafy greens & herbs

03

Small fruiting crops

04

Roots & tubers

05

Forestry seedlings

06

Flowers

07

Grass & fodder

08

Mushrooms

Platform configurations are customized to specific crop requirements and commercial growing methods.

THE OPERATIONAL ADVANTAGE

More canopy.
Less infrastructure.

The Rotary Frame uses vertical volume to increase productive growing area within a smaller facility footprint. That means more plants can share the same structure, climate-controlled environment, and operating space.

01Facility efficiencyReach your target with less building area

Vertical space utilization allows more plants to share the same structure, climate-controlled environment, and operating space.

Vertical densitymore canopy within the same footprint
02Accessible crop handlingEvery level comes within reach

Automatic rotation brings crops to an accessible processing height. Optional mobile carousels can further reduce worker movement across the facility.

Working heightcrops move to the operator
03Configurable productionControls aligned with the crop cycle

Coordinate rotation and irrigation around crop requirements while using movement to support more even growing conditions.

Programmablerotation and irrigation
ILLUSTRATIVE COMMERCIAL CONFIGURATION

See what the Rotary Frame
can make possible.

This example places 32 Rotary Frames within a 6,200-square-foot building footprint, creating 20,832 square feet of productive canopy while maintaining operational access. Drag to explore the layout.

Click & drag to explore
Fleet Deployment
32 Rotary Frames
4 rows × 8 bays tight-packed
Aisle Clearance
5.9 ft Hallways
High-density operator corridors
Effective Canopy
20,832 sq.ft
On a 6,200 sq.ft building slab
Yield Multiplier
4.34×
Effective canopy vs single tier
Loading 3D model...

Figures represent the illustrated configuration. Final capacity and layout depend on facility dimensions, crop requirements, access needs, and selected platform configuration.

Model custom facility layout
FROM FACILITY FIT TO COMMISSIONING

Configured around your operation.

Every deployment begins with the crop, production target, and available facility volume. The level of support is tailored to each project—from platform supply through full deployment support.

Discuss Your Facility
01 / FACILITY FIT

Assess

Evaluate crop requirements, facility dimensions, production targets, and operational access.

Scoped to your project
02 / PLATFORM DESIGN

Configure

Define Rotary Frame dimensions, growing levels, controls, and the surrounding facility layout.

Scoped to your project
03 / PROJECT SUPPORT

Deploy

Support integration, installation, commissioning, and operator readiness according to project needs.

Scoped to your project
Commercial vertical farming canopy
RETROFITS & NEW BUILDS

What could your facility produce?

Tell us what you’re growing, your production target, and the space you’re working with. We’ll help determine whether the Rotary Frame fits your operation.
